Other items in the box
- Remote Control
- Batteries for remote control
- Power cord
- Table top stand
- Optional accessories: Set up Remote RC2573GR
- Optional accessories: Wireless SmartLoader 22AV1120

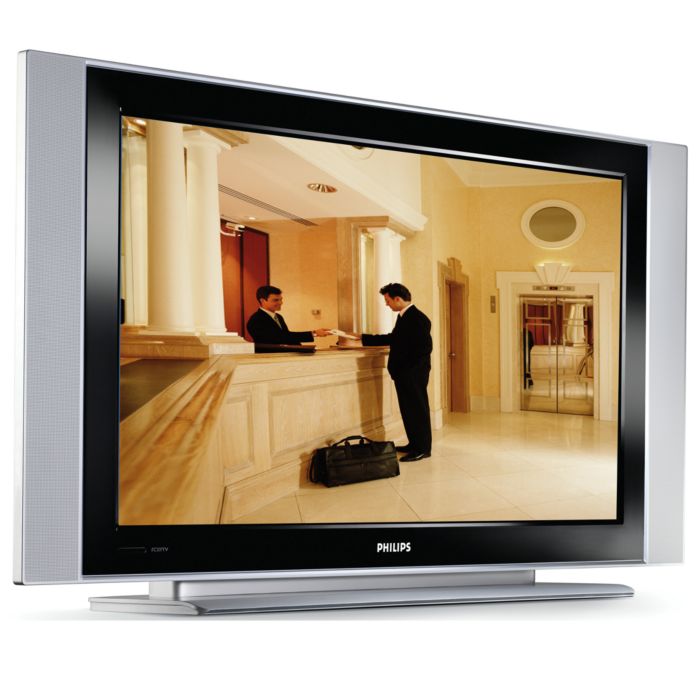

professional flat TV
32HF7443/97
SmartConnect System FlatTV
This system prepared LCD TV offers a razor sharp image with vivid colors and exciting viewing experience. With the advance features and optional accessories, this TV is fully prepared for interactive services and in-room entertainment.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
professional flat TV
Similar products
See all Unmapped
HD Ready for the highest quality display of HD signals
Enjoy the exceptional picture quality of High Definition pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.
HDMI input for full digital HD connection in one cable
HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
Wireless SmartLoader for fast cloning
Provides the ability to copy easy and wireless all programmming settings from one TV set into other TV sets in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.
Installation menu locking
Prevents unauthorized access to installation and configuration settings, to ensure maximum guest convenience and avoid unnecessary reprogramming costs.
ESP™ (Energy Savings Programmability)
Feature can be selected in the set-up menu. The TV can be switched off automatically after a specified period of use saving energy and provide extended product life time. The selectable range is from 0 to 99 hours.
Battery Low Detection for Remote Control
This feature informs of the need to replace the remote control batteries preventing nuisance calls and unneccessary replacement of batteries.
External loudspeaker connector
Amplified audio connector for easy installation of external speakers (like for bathrooms), eliminating the need for investments in external equipment
Welcome message on screen display
A welcome greeting is displayed each time the TV set is switched on.
Volume limitation
This feature predefines the volume range with which the TV set is allowed to operate, preventing excessive volume adjustments and avoiding disturbance of next door guests.
Smartplug RJ12 connector
The Smartplug RJ12 connector permits OEM or 3rd party decoders and controllers to interface with the TV.
SmartCard Xpress Box compatible for interactive systems
The optional SmartCard Xpress Box can be mounted at the rear side of the TV set and allows third party decoders and application cards to interface with the TV adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.
Pixel Plus for detail, depth and clarity
Pixel Plus is a digital picture processing technology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.
Technical Specifications
-
Picture/Display
- Aspect ratio
-
- Widescreen
- 16:9
-
- Diagonal screen size (inch)
- 32 inch
- Diagonal screen size (metric)
- 80 cm
- Color cabinet
- Bicolour Black & Silver Frost
- Brightness
- 500 cd/m²
- Picture enhancement
-
- Pixel Plus
- Progressive scan
- 3D Combfilter
- 3/2 - 2/2 motion pull down
- Active Control
- Luminance Transient Improver
- Color Transient Improvement
- Digital Noise Reduction
- Jagged Line Suppression
-
- Contrast ratio (typical)
- 600:1
- Display screen type
- LCD WXGA Active Matrix TFT
- Panel resolution
- 1366 x 768p
- Response time (typical)
- 8 ms
- Viewing angle (horizontal)
- 176 degree
- Viewing angle (vertical)
- 176 degree
- Screen enhancement
- Anti-Reflection coated screen
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75, 85Hz
- 800 x 600, 56, 60, 72, 75,85Hz
- 1024 x 768, 60Hz
-
- Video Formats
-
- 640 x 480i - 1Fh
- 640 x 480p - 2Fh
- 720 x 576i - 1Fh
- 720 x 576p - 2Fh
- 1280 x 720p - 3Fh
- 1920 x 1080i - 2Fh
-
-
Tuner/Reception/Transmission
- Aerial Input
- 75 ohm coaxial (IEC75)
- Tuner bands
-
- VHF
- UHF
- S-Channel
- Hyperband
-
- TV system
-
- PAL B/G
- PAL D/K
- PAL I
- SECAM B/G
- SECAM D/K
- NTSC
-
- Number of Preset Channels
- 125
- Video Playback
-
- PAL
- SECAM
- NTSC
-
- Stereo System
- Nicam BG/DK/I, 2CS BG/DK
-
Convenience
- Ease of Installation
-
- Automatic Tuning System (ATS)
- Fine Tuning
- Cloning of TV settings
- Advanced Hotel Mode
- Program Name
-
- Ease of Use
-
- Smart Picture
- Smart Sound
-
- Clock
- Sleep Timer
- Comfort
- Hotel Guest features
- Screen Format Adjustments
-
- 4:3
- Full screen
- Superwide
- Widescreen
- Subtitle Zoom
- Zoom 16:9
- Zoom 14:9
-
- Remote Control
- TV
- Remote control type
- RC2887
- Teletext
- 10 page Smart Text
- On-Screen Display languages
-
- English
- Malay
- Simplified Chinese
-
- VESA Mount
- 200 x 100 mm
-
Sound
- Output power (RMS)
- 2 x 15 W
- Sound Enhancement
- Auto Volume Leveler
- Sound System
-
- Stereo
- Virtual Dolby Surround
-
-
Connectivity
- AV 1
-
- YPbPr (2fh)
- Audio L/R in
-
- Connectivity Enhancements
-
- RJ12 connector
- RJ45 connector
- HM-Link
- SmartCard Xpress box ready
- Extra Power supply 12V/1W
- External Loudspeaker connector
-
- AV 2
-
- CVBS
- S-Video
- Audio L/R in
-
- AV 3
-
- VGA PC-in
- YPbPr (2Fh)
- Audio L/R in
-
- AV 4
- HDMI
- Front / Side connections
-
- CVBS in
- S-video in
- Audio L/R in
-
- Other connections
- Monitor out, CVBS, L/R (cinch)
-
Power
- Mains power
- AC 100-250V, 50/60Hz
- Ambient temperature
- 5 °C to 40 °C
- Power consumption
- Normal Operation 120 W
-
Accessories
- Cables
- Minijack-to-AV Cinch (Female)
- Included accessories
-
- Remote Control
- Batteries for remote control
- Power cord
- Table top stand
-
- Optional accessories
-
- Set up Remote RC2573GR
- Wireless SmartLoader 22AV1120
-
-
Dimensions
- Box depth
- 240 mm
- Box height
- 690 mm
- Box width
- 1000 mm
- Set Width
- 924 mm
- Set Height
- 511 mm
- Weight incl. Packaging
- 22 kg
- Set Depth
- 118 mm
- Width (with base)
- 924 mm
- Height (with base)
- 550 mm
- Depth (with base)
- 222 mm
- Set weight
- 18.2 kg
