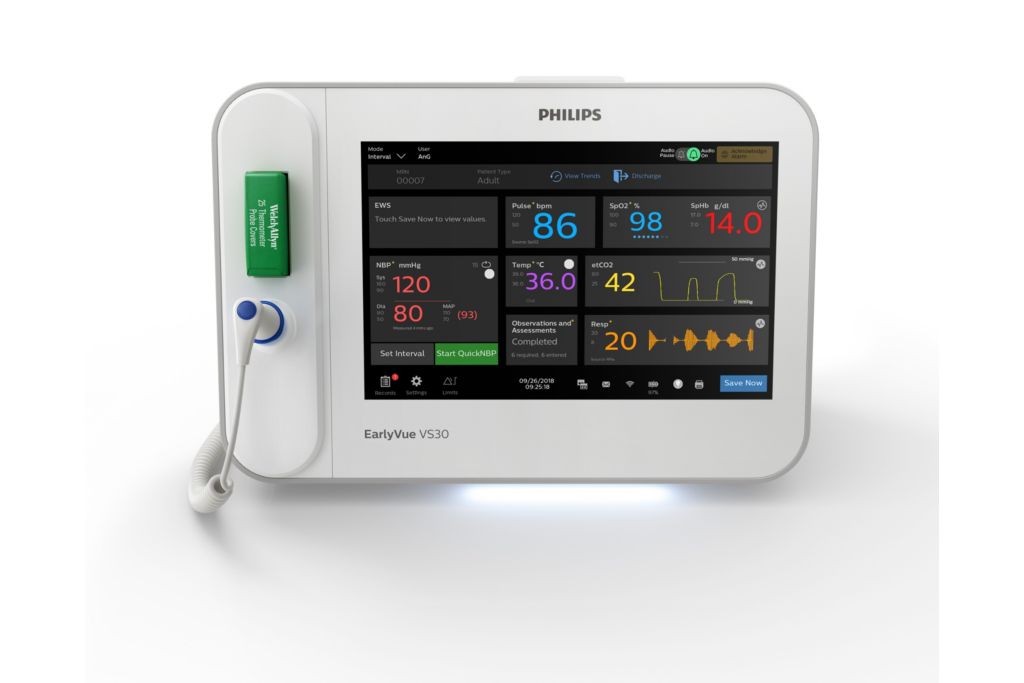

EarlyVue VS30
Vital signs monitor
EarlyVue VS30
Vital signs monitor
Philips EarlyVue VS30 vital signs monitor unleashes the power of automated Early Warning Scoring (EWS) to help you quickly pinpoint subtle signs of patient deterioration, and confidently deliver proactive care. Early detection, intelligent intervention.
Features
Connect to the EMR or HIS
Auto-populate user and patient demographics with a license-free barcode scanner to reduce the potential for manual transcription errors.
EarlyVue VS30 streams patient data directly to your EMR or HIS via HL-7 or IntelliBridge Enterprise.
Put the flow in workflow
This vital signs monitor can be tailored to your hospital, your protocols and the way you work. Document full patient assessments with up to 35
customizable fields using QuickCapture. Automate EWS calculations to accelerate care with QuickAlerts. And simplify data flow to and from your hospital systems with the QuickCheck feature.
Intuitive to learn and use
An intuitive user interface and 10” touchscreen display help to shorten the learning curve and reduce training time – even for less experienced
staff. The EarlyVue VS30 is an ideal choice for organizations that need to manage frequent turnover.
Specifications
- Physical specifications
- Width
- 33 cm
- Height
- 23 cm
- Depth
- 23 cm
- Weight (fully options, with battery)
- 5 kg or less
- Battery, lithium ion, smart battery
- 11.1 volts 7800 mAh
- Battery operating time (new, fully charged)
- At least 6 hours
- Internal power supply
- 100 to 240 VAC
- Maximum output power consumption
- 60 W
- Frequency
- 50/60 Hz
- Display
- Screen type
- LCD with 5-wire resistive touchscreen
- Screen size
- 10.1 in
- Refresh frequency
- 60 Hz
- Resolution
- 216.96 x 135.6 mm
- Viewing angle
- ±85°
- Recorder
- Type
- Thermal
- Paper width
- 58 mm
- User selectable speeds
- 6.25, 12.5, 25, 50 mm/sec
- Environmental specifications
- Humidity, operating and storage for monitor
- 10% to 90% of RH (non-condensing)
- Humidity, operating and storage for monitor with recorder and paper
- 10% to 90% of RH for monitor with recorder and paper
- Noninvasive blood pressure measurement
- Adult systolic range
- 30 to 270 mmHg
- Adult pulse rate range
- 40 to 300 bpm
- Pediatric systolic range
- 30 to 180 mmHg
- Pediatric pulse rate range
- 40 to 300 bpm
- Neonatal systolic range
- 30 to 130 mmHg
- Neonatal pulse rate range
- 40 to 300 bpm
- NBP interval choices
- Off, 1, 2, 3, 5, 10, 15, 30, 60, 90, or 120 minutes or STAT
- Masimo rainbow™ measurement
- Total hemoglobin (SpHb)
- Adult patients (30 kg or more), Pediatric patients (10 kg or more)
- Acoustic Respiration (RRa)
- Adult patients (30 kg or more), Pediatric patients (10 kg or more)
- CO2 measurement
- Measurement range
- 0 to 150 mmHg
Related products
- The Philips Device Management Dashboard lets you remotely diagnose problems and technical alarms on select Philips patient monitors. You can view device configuration, approximate location, network connection, and error log – all from your PC or mobile device.
- M1191BL SpO₂ glove sensor features a long, 3-meter (118”) cable to accommodate a variety of bed/room configurations. It is designed for use on the fingers of adults greater than 50 kg (110 lbs). Manufactured without latex, durable and comfortable, the M1191BL is a cost-effective, versatile choice for continuous oxygen saturation measurement.

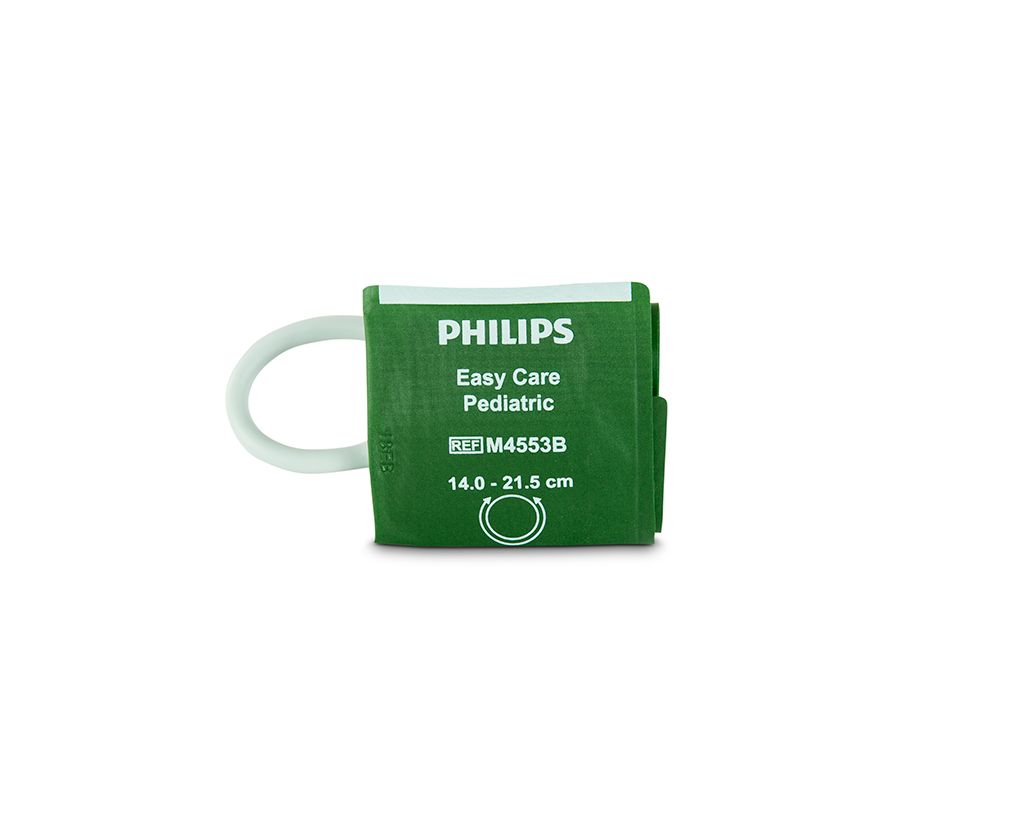

- The Philips Easy Care non‐invasive blood pressure (NBP) cuff is a durable multi‐patient pediatric cuff designed with rounded edges for greater comfort, and suitable for use in most areas of the hospital.

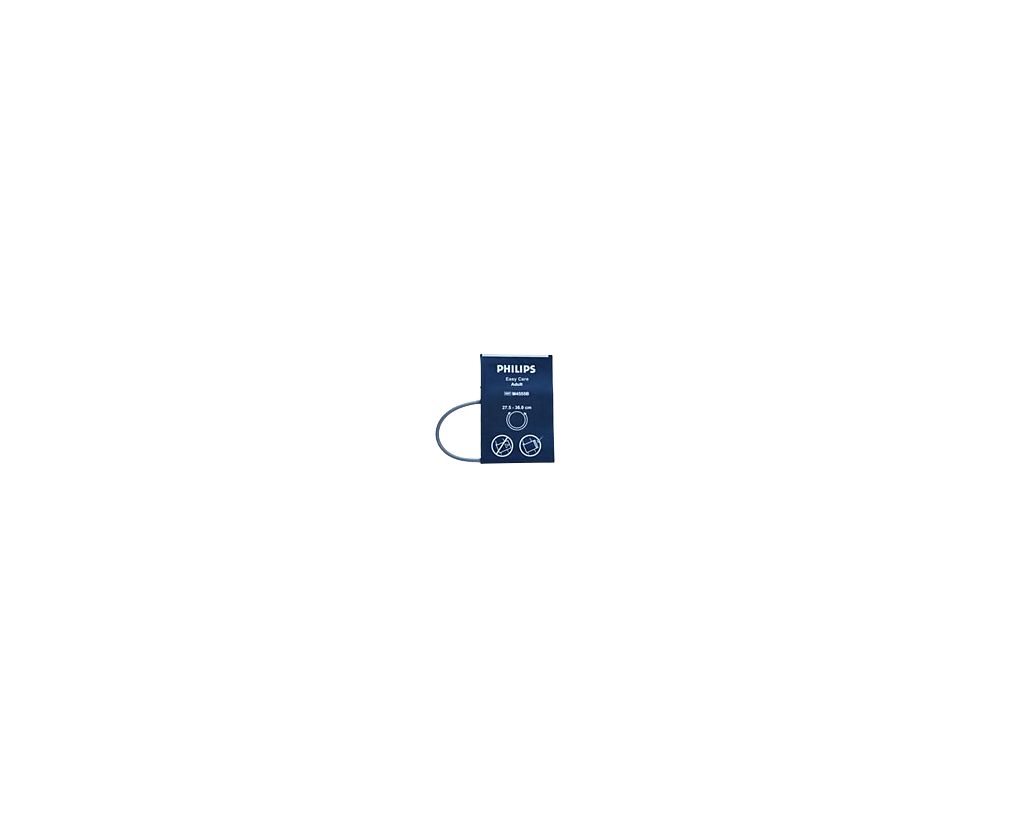

- The Philips Easy Care non‐invasive blood pressure (NBP) cuff is a durable multi‐patient adult cuff designed with rounded edges for greater comfort, and suitable for use in most areas of the hospital.
Disclaimer
Product may not be available in all geographies. Please check with your Philips representative for complete portfolio availability.
